System characteristics

Deterrence: High-voltage pulse electronic fence This is a new concept of peripheral alarm system, namely "tangible" alarm system. It really gives the intruder a sense of deterrence and a blocking effect, which adds a psychological burden before committing a crime. Do not dare to act rashly, so as to give priority to prevention, reduce the number of crimes and improve the reliability of the system.

Zero false alarm and strong adaptability: Because the electronic fence system's alarm mode is power failure and short circuit alarm, it can achieve zero false alarm. Because it is not affected by environment (such as trees, small animals, vibration, etc.) and climate (such as rain, fog, wind, snow, etc.) like other peripheral equipment. It is not limited by terrain height and tortuous shape of boundary, unlike infrared and microwave wall systems, it is limited to the perimeter environment of sight distance, straight lines and flat areas.

Strict and active protection: it can be erected arbitrarily according to the terrain, without dead ends, eliminating the blind spot of safety, giving electric shock when attempting to cross, and the on-site warning signs and audible and visual alarm give great psychological deterrent effect to intruders; It has a good active protection effect.

It can be networked with other security systems: it can be linked with monitoring. When an alarm is given, the camera turns to the corresponding position to start recording; IT can also be well integrated into other IT systems, such as linked mobile phone GSM signal and Contact ID protocol for accessing telephone network.

The system can realize remote network management: the distance from the fence site to the command center is very long, so it is necessary to upload the alarm signal remotely. Once an alarm happens, the system will immediately display the alarm area and send out an audible and visual alarm, and the command center will inform the managers in each area so that they can respond quickly and check the alarm situation in time.

Product advantage

Communication interface: the host has a built-in network module, which can communicate directly with the network. Compared with the external network module, it is more stable and reliable, and the construction and debugging are more convenient and quick.

Mobile phone control: It can be remotely controlled through WeChat APP.

Anti-bypass and single-line net-touching alarm: The electronic fence host uses intelligent algorithm, which can effectively detect the behavior of the intruder's wire bypass (equipotential jumper), identify the intruder's touch of the single line at the front end of the electronic fence, and immediately give an alarm to make up for the fatal flaw of the traditional electronic fence. The net-touching alarm completely revolutionizes the alarm mode of the electronic fence, and can distinguish the touch between human body and small animals.

Physical keys+large LCD screen: physical keys, 100,000 pressing experiments, flexible control of debugging function; 5.3-inch LCD screen, large screen, real-time display of a variety of information.

Liquid crystal display: directly display the front-end alloy line voltage value on the host LCD screen.

Differential voltage technology: there is a voltage on each line, and there is a voltage difference between two adjacent lines.

Manual switching: Manual switching of high/low voltage, arming and disarming, voltage level adjustment and setting, and alarm suppression. The paralysis of a single device will not affect the whole system.

Remote control: functions such as remote zone deployment, mode switching and output voltage adjustment can be realized through mobile phone WeChat, DF600A network control host or RD6000 perimeter alarm management software.

One machine and two uses: the main machine has external four-wire/six-wire switch button, and you can choose four-wire electronic fence or six-wire electronic fence.

Basic parameter

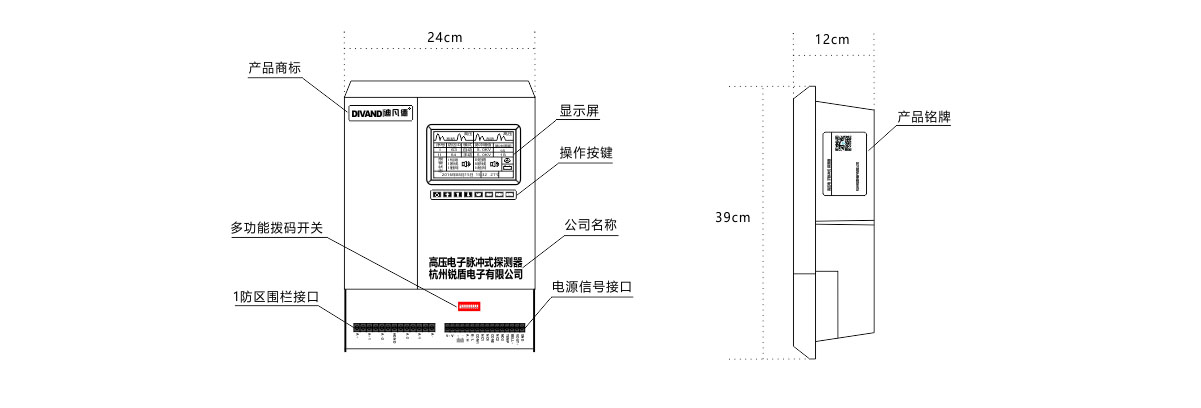

Electronic fence host

Number of defense zones: 1

Communication mode: RS485 communication and on-off communication.

Display mode: 5.3 inch LCD display

Operation mode: local key operation, remote PC software operation, remote WeChat operation and remote host operation.

And power supply environment parameters

Power supply voltage: DC18 ~ 24V/2A

Backup power supply: DC12V4.5A

Environment: temperature-40 ~+65℃; Humidity ≤95%

Output parameters

Pulse peak value: 5KV～10KV
